🛰️ Project 1: Topographic & Aks Shajra Overlay Survey
Client: Pak Arab Fertilizer Ltd. | Location: Multan, Punjab | Area: 40 Murabba (~1,000 acres)
🔷 Project Overview:
Buraq Surveying executed a large-scale geospatial survey for Pak Arab Fertilizer Ltd. in Multan, divided into two core components: engineering design and land legal referencing.

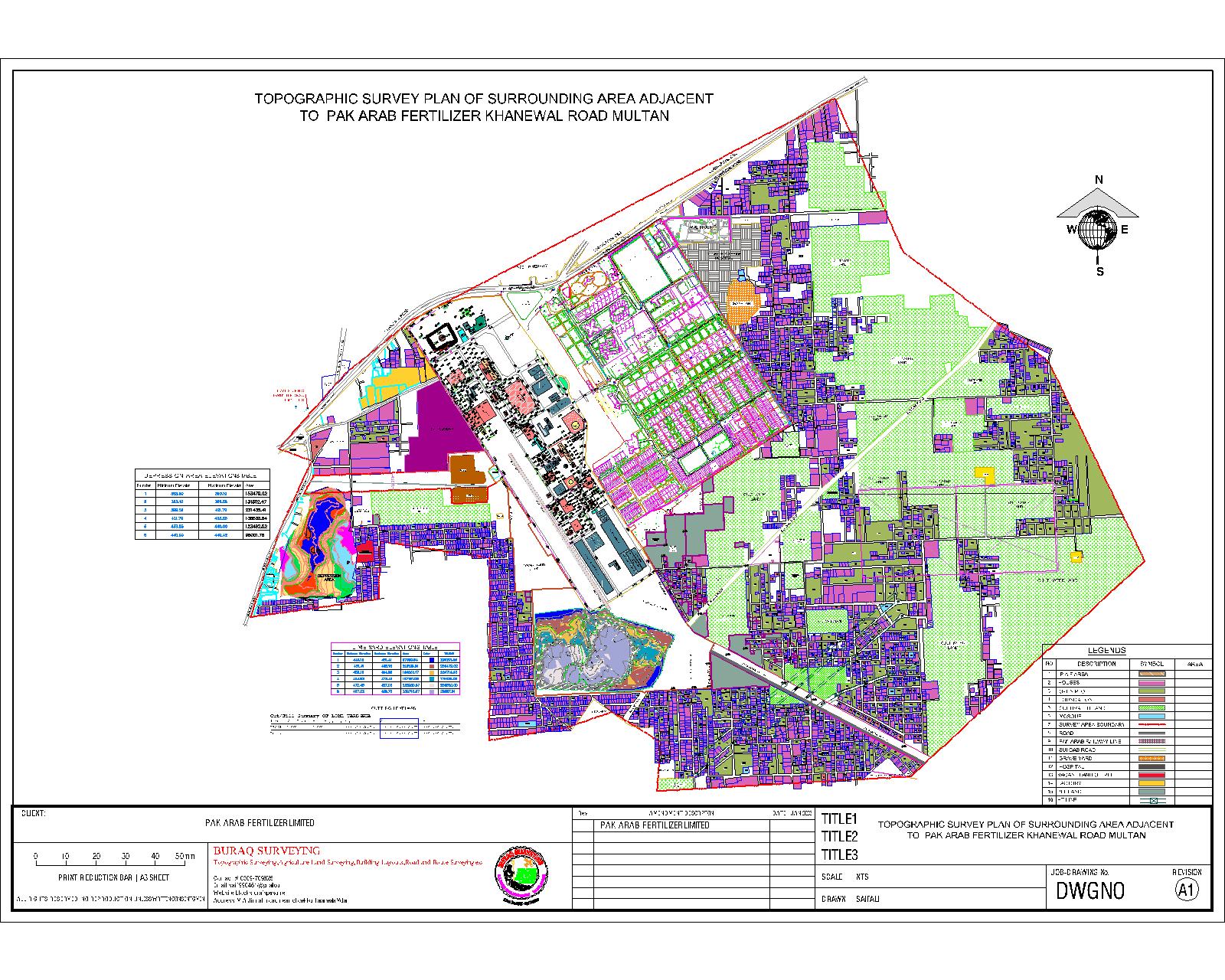

🔹 Plan A: Topographic Survey & Contour Mapping
- Ground-based topographic survey using GNSS and Total Station
- Complete AutoCAD mapping of all natural and man-made features
- Contour generation at 0.25m intervals
- Cut and fill analysis for the Lime Yard Area
- Geo-referenced outputs aligned with engineering standards

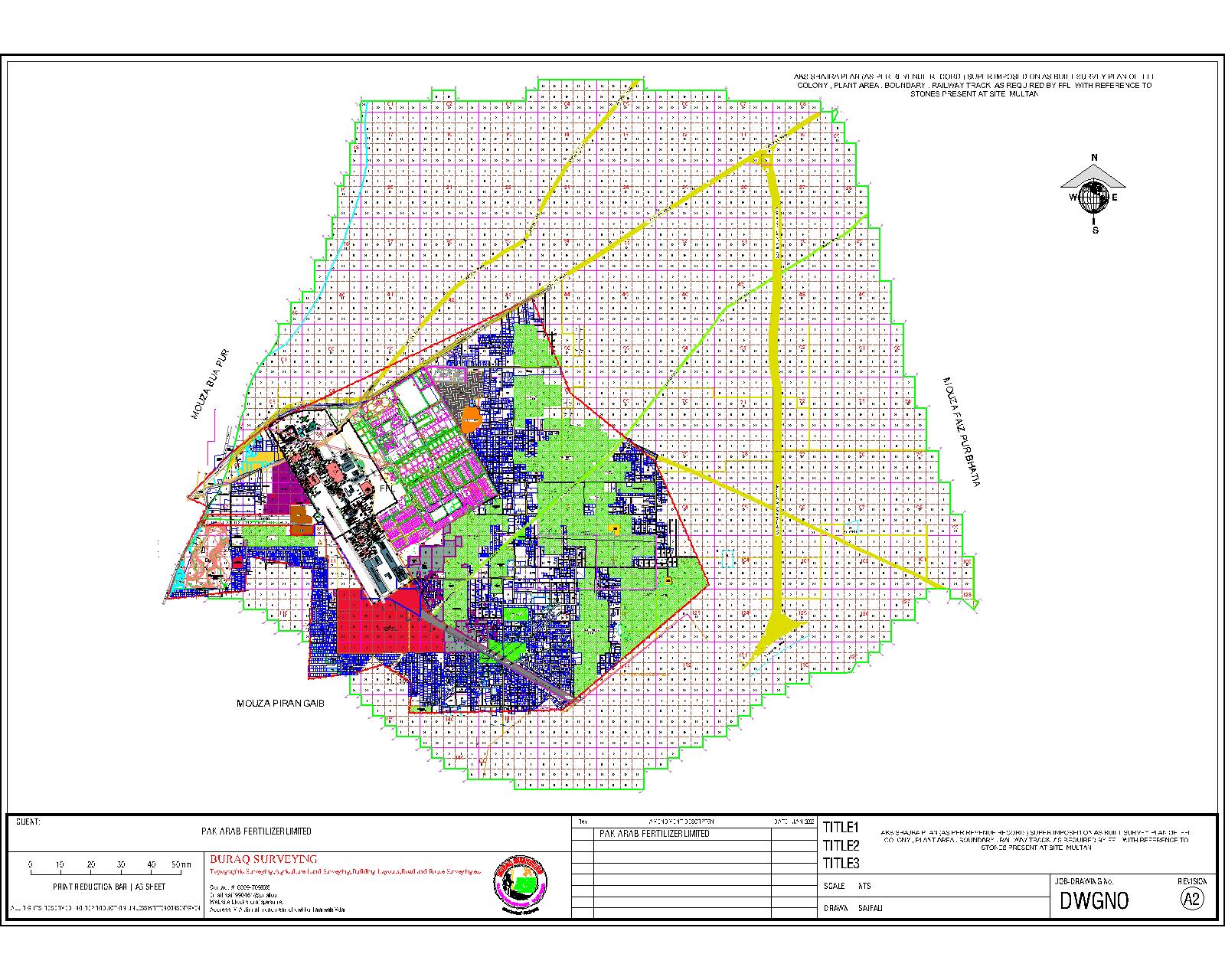

🔹 Plan B: Aks Shajra Overlay on As-Built Survey
- Collection of Aks Shajra plans from revenue offices
- Overlaying cadastral boundaries on the as-built site map
- Mapping of major site assets (Plant, Colony, Boundary, Railway Track)
- Legal boundary verification using physical markers
- Final AutoCAD deliverables with merged engineering–legal references
✅ Project Outcome:
- Legally verified land holdings with revenue records
- Terrain and surface features digitized for engineering use
- Accurate grading and planning data
- A master geospatial dataset for long-term development and compliance
🛣️ Project 2: Topographic Survey & Infrastructure Design – Auto Market Project
Client: AB Traders | Location: Multan Road, Dera Ghazi Khan
🔷 Project Overview:
Buraq Surveying partnered with AB Traders to deliver surveying and infrastructure design for a new Auto Market along Multan Road. The goal was to convert raw land into a structured commercial hub.
🔹 Phase 1: Topographic Survey
- High-accuracy GNSS & Total Station survey
- Captured elevations, features, and site access points
🔹 Phase 2: Commercial Planning & Plot Design
- Shop plot layouts with optimal frontage
- Alignment with site conditions and property lines
- AutoCAD planning for commercial viability

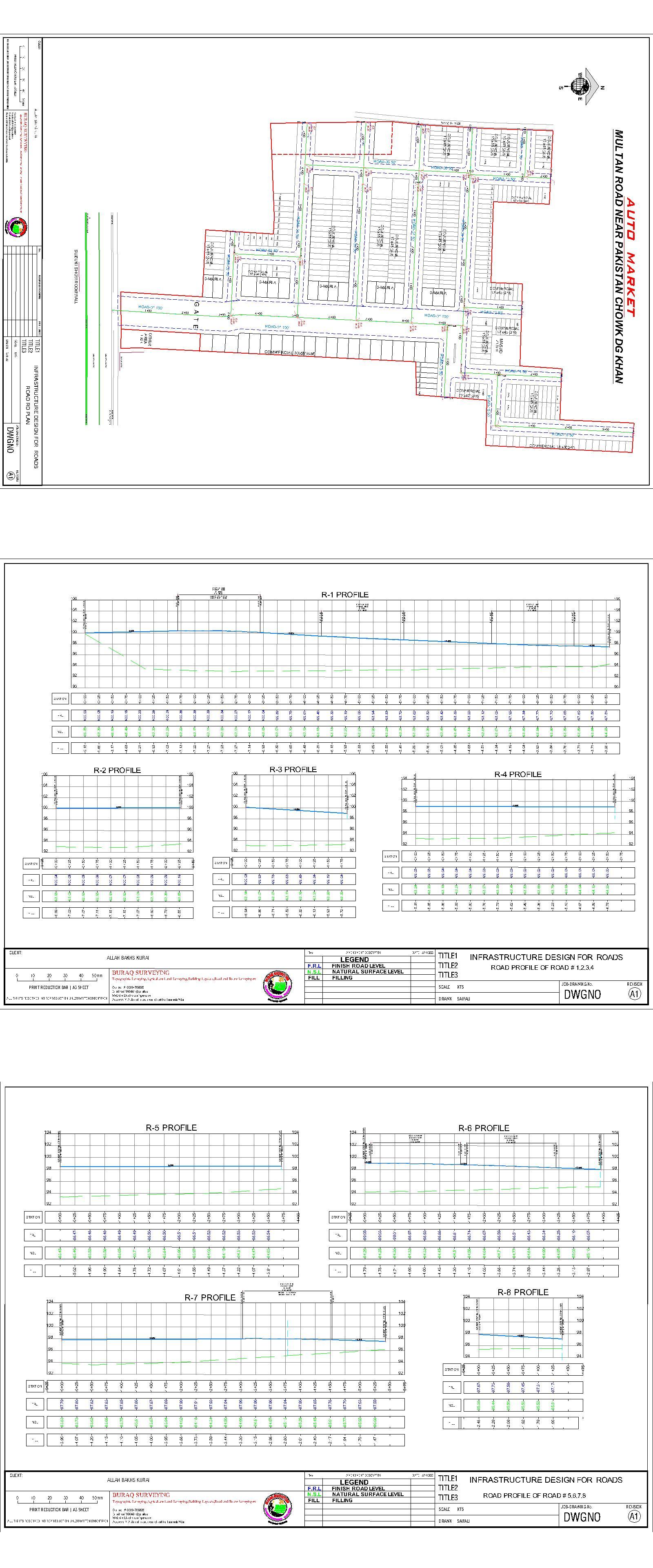

🔹 Phase 3: Infrastructure Design
- Primary/secondary road network with turning spaces
- Road profile designs for drainage and slopes
- Sewerage layout optimized for terrain
- Utility placement and road cross-section plans
✅ Key Deliverables:
- Complete AutoCAD package (layout, contours, utilities)
- Grading and cut/fill plans
- Documentation for contractors & municipal approval
🎯 Project Outcome:
- Technically sound and accessible commercial hub
- Sustainable infrastructure aligned with future growth
- Strong foundation for AB Traders’ success
